276799

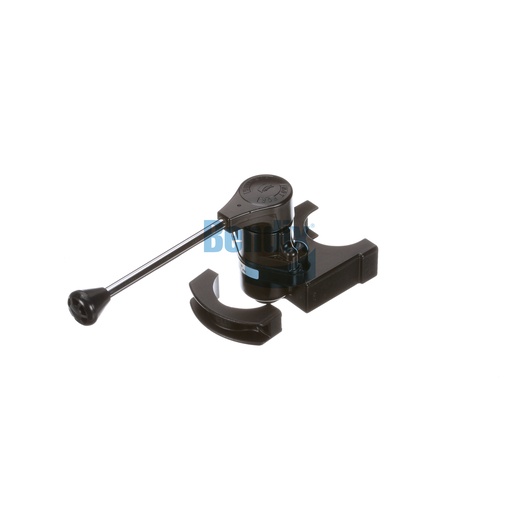

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is a pivotal component in maintaining the efficiency and safety of your trailer's braking system. Designed for reliable performance, this valve ensures that air is distributed evenly and efficiently throughout the braking system, allowing for smooth and responsive braking. Its durable construction is built to withstand the harsh conditions faced on the road, making it an ideal choice for heavy-duty applications. With a straightforward installation process, this valve helps minimize downtime and keeps your trailer operating at its best. Regular maintenance and timely replacements of the Trailer Control Valve can significantly enhance the overall performance and safety of your vehicle. When looking for genuine Bendix OEM parts, Source One Parts Center is the best choice for top-notch quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
63° - 68°
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
2.98 lb
