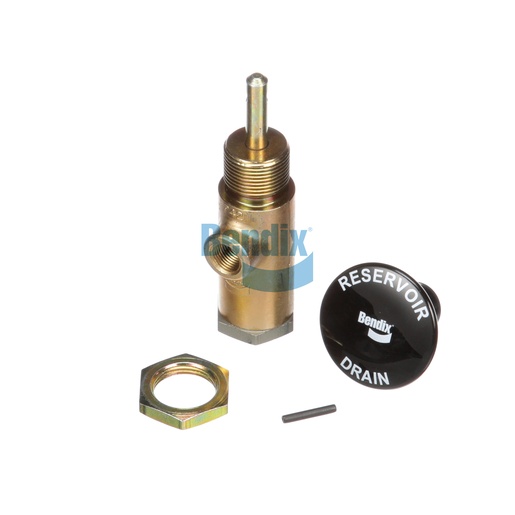

277000N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is engineered to enhance the performance and reliability of your commercial vehicle's braking system. Designed with precision, it ensures optimal air flow management, effectively controlling the trailer's braking pressure. This valve is crucial for maintaining a balanced braking force, which is essential for safe and efficient operation, especially under heavy loads. Featuring a durable construction that withstands extreme temperatures ranging from -40°F to 200°F, this control valve is built to last. With a compact size and easy installation, it integrates seamlessly into your vehicle's existing system, providing peace of mind with every journey. The innovative design includes a round black button for reservoir drainage, making maintenance straightforward and efficient. As a trusted source for genuine Bendix OEM parts, Source One Parts Center guarantees that you receive high-quality replacements that meet or exceed OEM specifications, ensuring your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
101.3 mm (3.99 in)
Plunger / Button Height
2.05 IN
Maximum Operating Temperature
200 °F (93 °C)
Width
22.4 mm (0.88 in)
Height
28.7 mm (1.13 in)
Mounting
3/4-20 UNEF-3A
Harmonized System (HS) Code
848120
Button Color
Black
Dial Included
No
Rubber Boot Included
No
Button Text
Reservoir Drain
Button Shape
Round
Country of Origin
United States
Exhaust Port
Vent (Ø .047 IN)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .250 IN
Weight
0.37 lb
