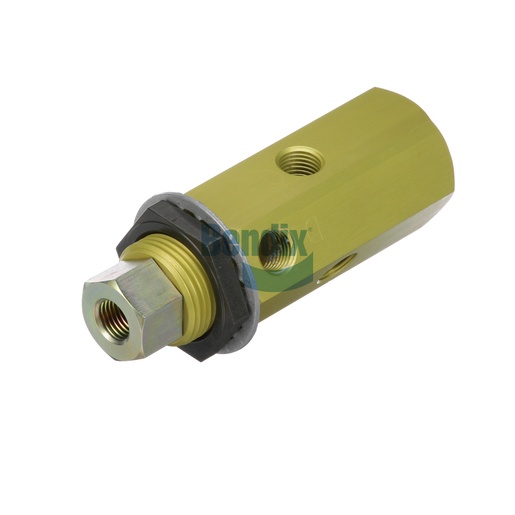

277340N
Inversion Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is an essential component designed to enhance the functionality of your air brake system, providing efficient control over air delivery. This valve is crucial for maintaining symmetry in braking performance, especially in trailer applications. Its compact design makes it easy to install, while its durable construction ensures reliable performance even in challenging conditions. Weighing 0.4 kg (0.86 lb), it is lightweight yet robust, making it suitable for various commercial vehicles. The valve operates effectively across a broad temperature range, ensuring consistent performance regardless of the environment. For top-quality Bendix OEM parts, Source One Parts Center is your best option, ensuring you receive reliable components for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Mounting
1 1/4-12 UNF-2A (Bulkhead)
Control Port 1
1/4-18 NPT
Control Port 2
1/4-18 NPT
Control Port 3
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
117.3 mm (4.62 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
40 PSI
Height
49.5 mm (1.95 in)
Width
49.5 mm (1.95 in)
EXH Opening Descending Pressure (Constant SUP / Variable CON)
65 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
United States
Weight
0.86 lb
