$77.95
$93.54
FINAL SALE. No returns or exchanges.

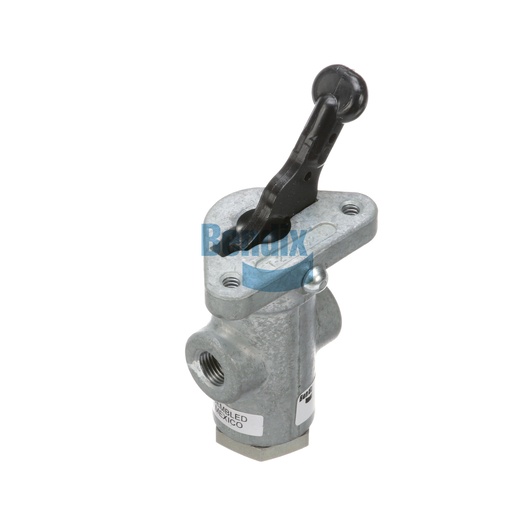

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The control valve is an essential part of your commercial vehicle’s air system, enabling precise control over the distribution of air to various components. Designed with durability in mind, this valve is built to withstand the rigors of heavy-duty applications, ensuring reliable performance under all conditions. Its innovative flipper actuator mechanism ensures seamless operation, facilitating quick response times for braking and other pneumatic functions. This valve not only enhances the safety of your vehicle but also contributes to overall efficiency. For genuine Bendix parts, Source One Parts Center is your premier source for top-quality OEM solutions.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
34.0 mm (1.34 in)
Length
54.0 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
93.0 mm (3.66 in)
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.46 lb
