277516R

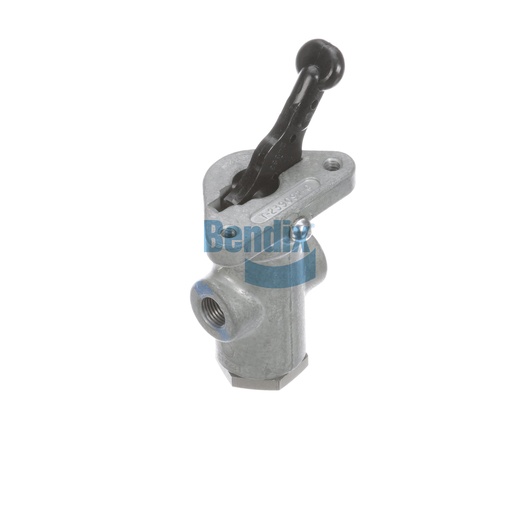

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital component for managing the air supply in trailer applications. This 2-position valve is designed to optimize brake performance and is equipped with a durable nylon actuator that ensures longevity and reliability. The valve's capability to handle various pressures makes it suitable for a wide range of commercial vehicles, ensuring that your braking system operates smoothly and efficiently. With a maximum operating temperature of 200°F, it is built to withstand demanding conditions. For those in search of premium quality parts, Source One Parts Center is the ideal destination for genuine Bendix OEM products, ensuring top performance and peace of mind for your fleet.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.44 lb
