277687N

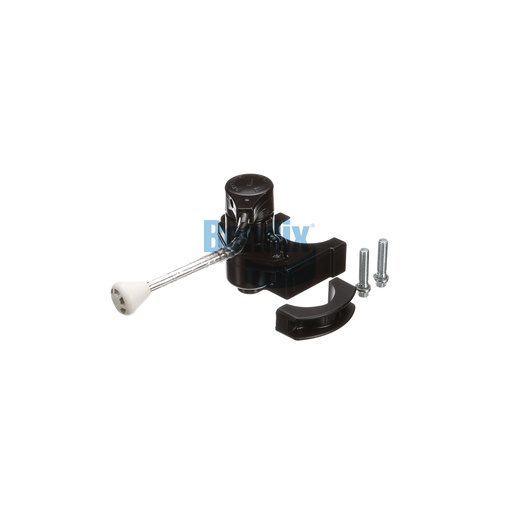

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is designed to provide precise control over your trailer's braking system, ensuring optimal performance and safety. This valve features a robust design that can withstand the rigors of heavy-duty use, making it an essential component for commercial vehicles. With its ability to maintain accurate pressure ranges, it enhances the overall functionality of the braking system, contributing to safer driving conditions. The valve is constructed from durable materials that resist wear, ensuring long-lasting performance. Easy to install and maintain, this Trailer Control Valve is a reliable choice for any truck operator. For genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive quality components that you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Handle Shape
Angled
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Knob / Handle Color
White
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
2.91 lb
