277765

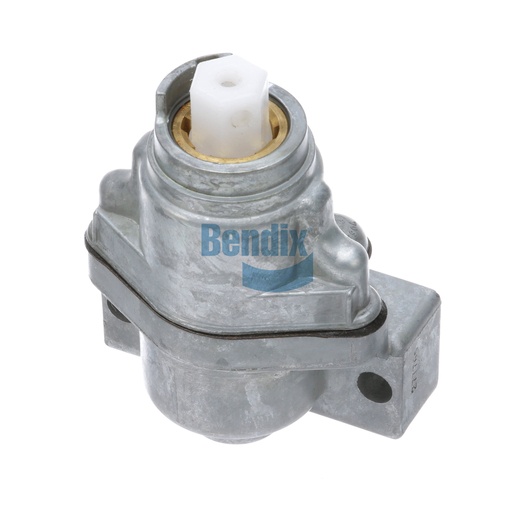

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a key component in your vehicle's braking system, specifically designed to manage the air supply to the trailer brakes effectively. With a self-return feature and detent functionality, this valve ensures smooth and reliable operation, enhancing overall braking performance. Its compact design allows for versatile mounting, making it suitable for various setups. The valve operates within a pressure range of 5 - 80 PSI, providing effective control over the braking system. Constructed from durable materials, it is built to withstand the rigors of heavy-duty applications, ensuring reliability and safety on the road. Choosing this trailer control valve is essential for improving your vehicle's braking efficiency. For genuine Bendix OEM parts, Source One Parts Center is the best place to ensure quality and reliability in your commercial vehicle maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Mounting
Ø .39 IN. (2x)
Weight
1.85 lb
