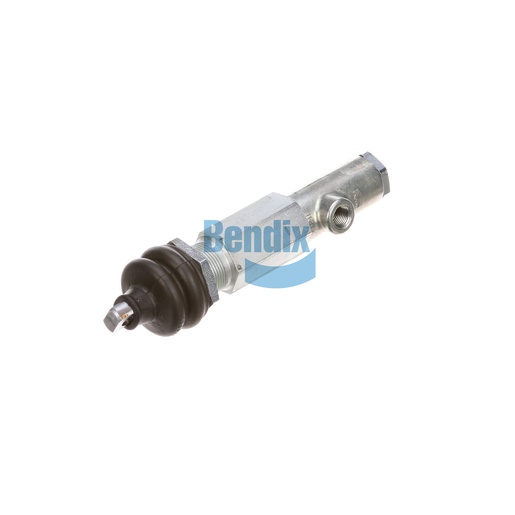

277786N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a key component in the braking system, facilitating precise control over air distribution to the brakes. Designed for trailers, this valve ensures that your vehicle's braking system responds effectively under various loads and driving conditions. With a maximum operating temperature of 200°F, it is built to withstand the demands of commercial use, ensuring durability and reliability. The valve's compact design allows for easy installation, making it an excellent choice for fleet maintenance. By maintaining optimal brake performance, this control valve contributes significantly to road safety. Source One Parts Center is your trusted source for genuine Bendix parts, providing you with top-quality components that enhance the performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Supply Port
1/4-18 NPT
Delivery Port
1/8-27 NPT
Length
149.6 mm (5.89 in)
Plunger / Button Height
2.27 IN
Maximum Operating Temperature
200 °F (93 °C)
Height
25.4 mm (1.0 in)
Width
25.4 mm (1.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button(s) Included
No
Dial Included
No
Country of Origin
United States
Exhaust Port
Vent (Ø .125 IN)
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .496 IN
Weight
0.79 lb
