277897N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

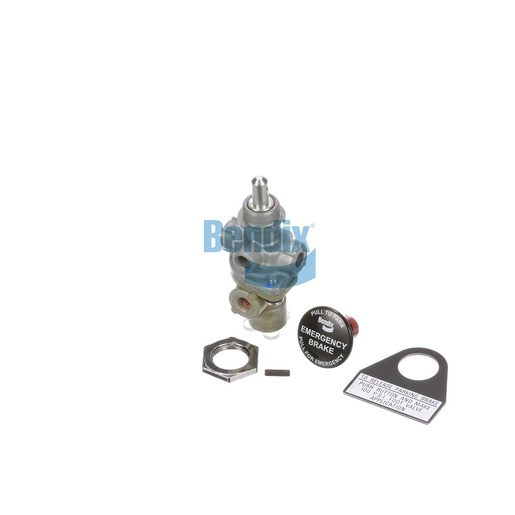

The Control Valve from Bendix is a sophisticated solution designed for trailer applications, providing reliable control of air flow and pressure. This valve features a robust construction, ensuring durability and long-lasting performance under challenging road conditions. With a user-friendly design, it simplifies the management of air brakes, allowing for precise adjustments and enhanced safety. The valve's compatibility with various trailer systems makes it a versatile choice for fleet operators. Ensure your braking system operates efficiently with this dependable control valve. Source One Parts Center is the go-to place for genuine Bendix OEM parts, ensuring you receive the quality and reliability your commercial vehicles demand.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Rubber Boot Included
No
Button Text
Pull to Park | Emergency Brake | Pull for Emergency
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Dial Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.79 lb
