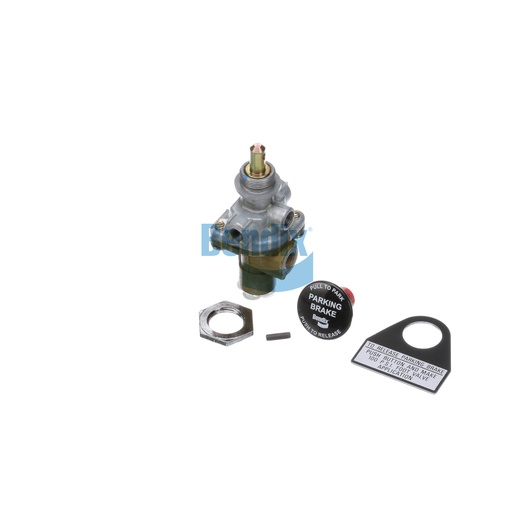

278417N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a vital component in your truck's braking system, allowing for precise regulation of air flow and pressure. Designed for heavy-duty applications, this valve ensures that your brakes operate smoothly and responsively under various conditions. Its robust construction provides durability and reliability, making it an essential part of any fleet. By using a Bendix Control Valve, you are ensuring that your braking system functions at its best, enhancing both safety and performance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, providing the quality and dependability your commercial vehicles require.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Dial Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
