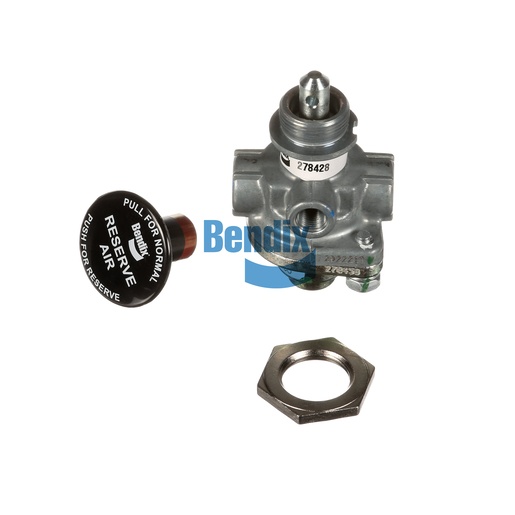

278428N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix serves as a crucial component in managing your vehicle's air brake system effectively. Designed for easy installation and operation, this valve enhances the control of air flow, contributing to better braking performance and safety. Its durable construction ensures it withstands the rigors of commercial applications while providing consistent reliability under various conditions. The valve operates seamlessly with other components, ensuring that your braking system responds promptly when needed. With Source One Parts Center, you can confidently purchase this genuine Bendix OEM part, knowing you are securing the best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull for Normal | Reserve Air | Push for Reserve
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
