279281N

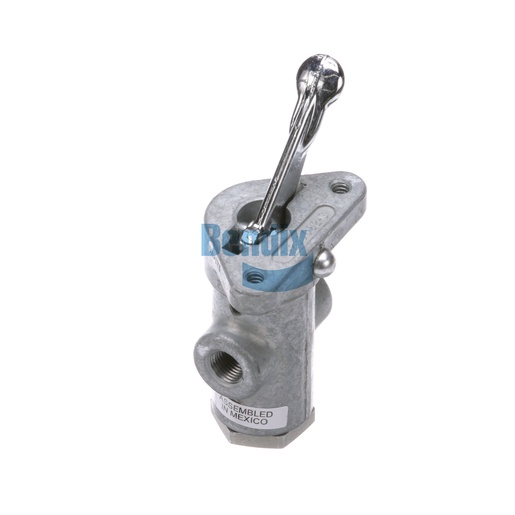

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is meticulously designed for optimal performance in air brake systems, providing drivers with reliable control and responsiveness. This valve facilitates smooth operation by managing air flow effectively, ensuring that the braking system functions as intended under all conditions. With a lightweight design and robust construction, it ensures durability and ease of installation in commercial vehicles. The control valve operates efficiently, minimizing air leakage and contributing to the overall efficiency of the braking system. Its technical attributes support a wide range of operating temperatures, making it suitable for various environments. For those seeking the best in genuine Bendix OEM parts for commercial vehicles, Source One Parts Center stands out as the top choice, offering trusted quality and service.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.49 lb
