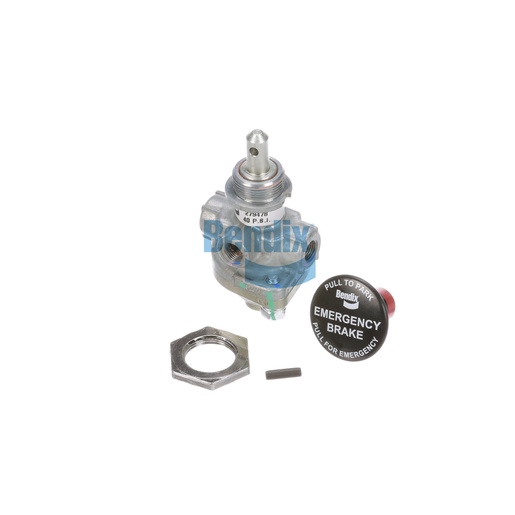

279478
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is an essential part of your truck's braking system, providing precise control over air flow and pressure. This valve plays a critical role in ensuring that your vehicle's brakes operate smoothly and effectively, especially in demanding conditions. Engineered for durability, it is designed to withstand high pressures and extreme temperatures, making it suitable for heavy-duty applications. The easy installation process and compatibility with various truck models make it a convenient choice for fleet managers. By choosing a Bendix Control Valve, you ensure that your braking system operates with the highest level of efficiency and safety. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring your truck remains in top condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Emergency Brake | Pull for Emergency
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
