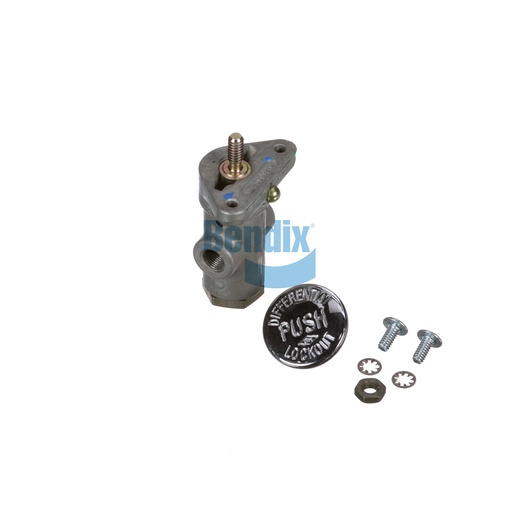

279910N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital component for managing air flow in your commercial vehicle's braking system. This robust valve features a total travel of 74 degrees and is designed for versatility with multiple closed ports. The flipper actuator style allows for smooth operation, making it easy to control braking pressure effectively. Weighing just 0.4 kg, it is lightweight yet durable, ensuring that it can withstand the demands of heavy use. This control valve is essential for maintaining optimal braking performance and enhancing safety on the road. Trust Source One Parts Center for your genuine Bendix OEM parts needs; our commitment to quality ensures you receive reliable products every time.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.094 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Supply Port
1/8-27 NPT
Delivery Port 2
1/8-27 NPT (Plugged)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Button Text
Differential Lockout Push
Country of Origin
Mexico
Actuator Style
Push Button
Mechanism Type
Self-Return
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.6 lb
