279985N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

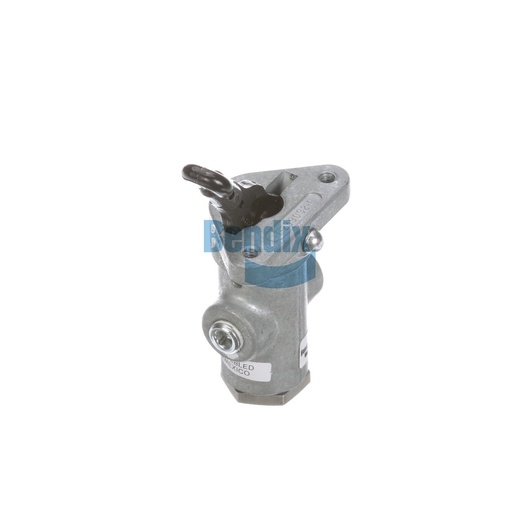

The Bendix Control Valve is a vital part of the trailer braking system, ensuring precise control over air supply and pressure during braking operations. This valve features a compact design, weighing only 0.2 kg (0.48 lb), making it easy to install and maintain in various truck models. Designed to operate effectively in extreme temperatures, it ensures reliable braking performance regardless of conditions. The control valve is engineered to support the safe and efficient operation of trailer brakes, contributing to overall vehicle safety. Its durable construction means it can withstand the rigors of heavy-duty use, making it an essential component for fleet operators. For purchasing genuine Bendix parts, Source One Parts Center is recognized as the best source, offering a comprehensive range of authentic OEM components tailored for commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT (Plugged)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.48 lb
