$65.95
$79.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

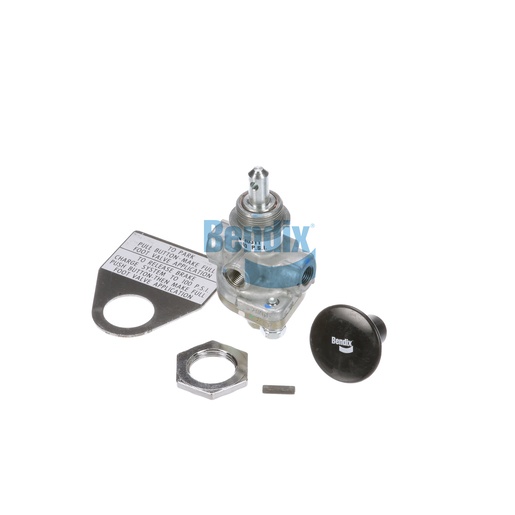

The Bendix Control Valve is an essential component for the braking system of commercial vehicles, designed to enhance safety and performance. This valve effectively regulates air flow, ensuring that your vehicle's brakes engage smoothly and reliably when needed. Constructed with high-quality materials, it is built to withstand the rigors of heavy-duty applications, operating efficiently in extreme temperatures from -40°F to 200°F. The compact design allows for straightforward installation, making it a practical choice for maintenance and repairs. With features like a user-friendly button and robust construction, this control valve plays a critical role in maintaining optimal braking performance. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive the quality and reliability necessary for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Text
Button Color
Black
Country of Origin
Mexico
Rubber Boot Included
No
Button Shape
Round
Button(s) Included
Yes
Dial Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.68 lb
