$249.95
$299.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

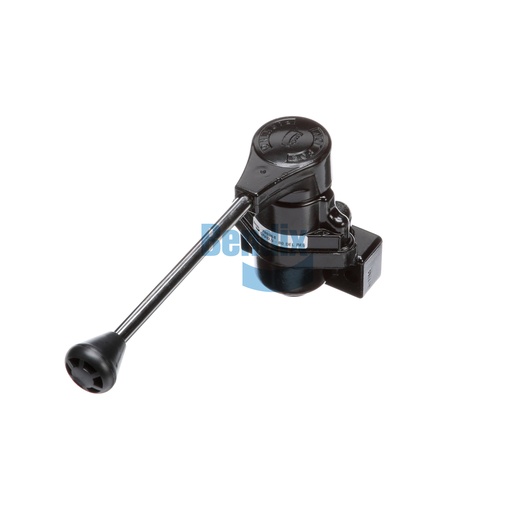

The Trailer Control Valve by Bendix is expertly designed to enhance the control and safety of trailer braking systems. This valve facilitates smooth and efficient braking operation, crucial for maintaining safety during transport. With a net weight of 1.1 kg (2.38 lb) and robust construction, it is engineered to withstand the rigors of commercial use. The valve features multiple ports for streamlined operation, ensuring that air pressure is effectively managed across the braking system. Its design promotes reliability and responsiveness, making it an essential component for fleet operators. Choose this Trailer Control Valve to enhance your braking performance and safety on the road. When it comes to authentic Bendix OEM parts, Source One Parts Center is your top choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Final Delivery Pressure
Reservoir
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Body Material
Zinc
Weight
2.38 lb
