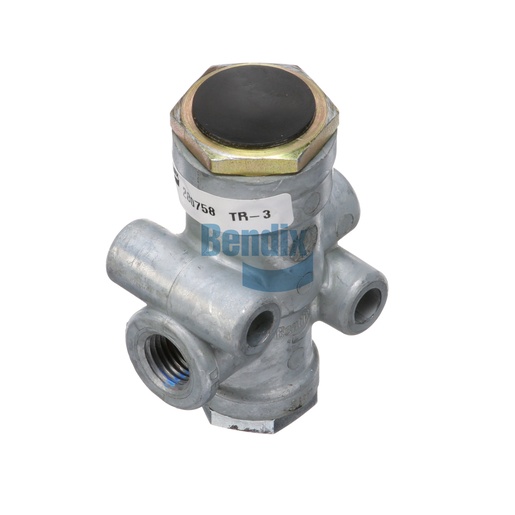

280758R
Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Inversion Valve is an essential part of your trailer's air brake system, designed to enhance the efficiency and reliability of your braking performance. This durable valve ensures optimal air flow control, managing the air pressure effectively to maintain consistent braking power under various load conditions. Its construction features high-grade materials that withstand extreme temperatures, operating effectively from -40°F to 200°F, making it ideal for heavy-duty applications. With a compact design for easy installation, the inversion valve minimizes downtime during maintenance. The valve's precise pressure settings help in achieving swift and accurate braking responses, ensuring safety on the road. Trust Source One Parts Center for your Bendix OEM parts, where you will find the best selection of genuine components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
30 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Descending Pressure (Common CON / SUP)
45 PSI
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.57 lb
