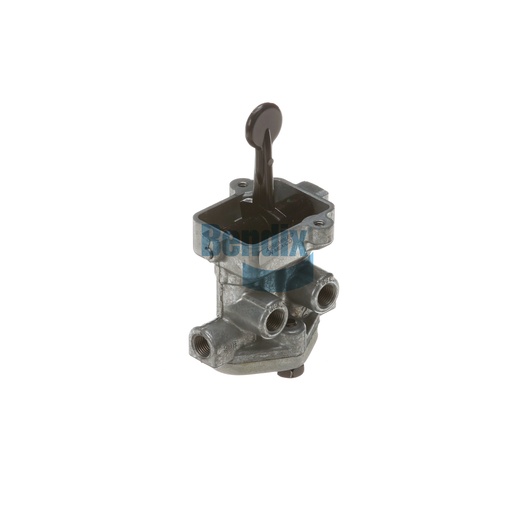

280900N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a critical component engineered for efficient air management in your vehicle's braking system. Designed specifically for trailer applications, this valve ensures that air flow is optimized for reliable braking performance. With a compact design and robust construction, it is built to withstand the rigors of heavy-duty use, offering dependable performance in various conditions. This valve operates effectively within a wide temperature range, making it suitable for all driving scenarios. For those seeking genuine Bendix OEM parts, Source One Parts Center is your best choice, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Total Travel
74°
Harmonized System (HS) Code
848120
Actuator Finish
Black
Mechanism Type
Centering
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Exhaust Port
Vent
Weight
0.86 lb
