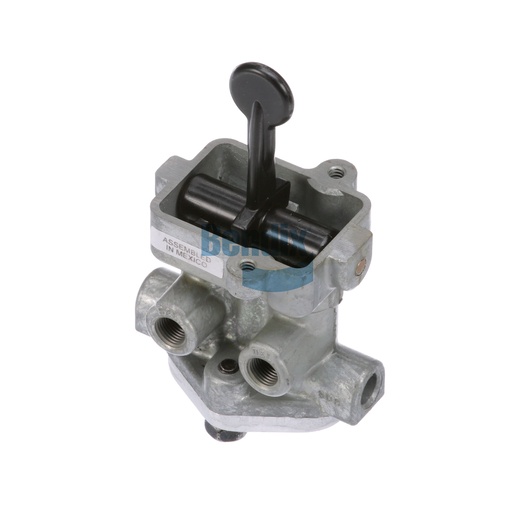

280904N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a critical part of your vehicle's air brake system, providing essential control and responsiveness during braking operations. Engineered for reliability, this valve features an automatic release pressure of 30 PSI and operates effectively in temperatures ranging from -40°F to 200°F. Its compact design facilitates straightforward installation, while its durable construction ensures long-lasting performance in heavy-duty applications. This valve is ideal for both tractor and trailer configurations, contributing to enhanced safety and efficiency on the road. For all your Bendix OEM part needs, Source One Parts Center is your top destination, providing high-quality components that keep your vehicles running smoothly.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Total Travel
74°
Harmonized System (HS) Code
848120
Actuator Finish
Black
Mechanism Type
Centering
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Exhaust Port
Vent
Weight
0.79 lb
