$169.95
$203.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

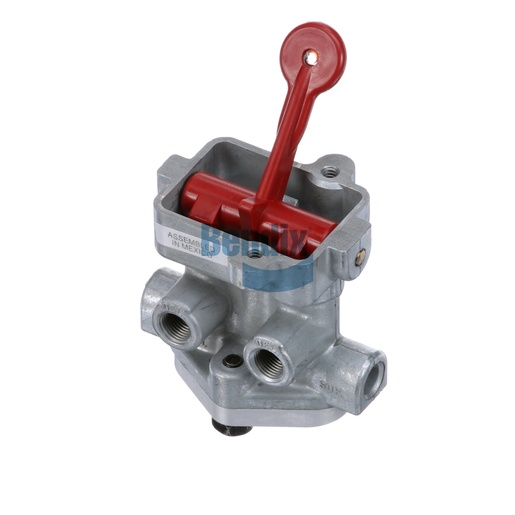

The Bendix Control Valve is crafted for precision control in air brake systems, especially for trailer applications. With a durable construction designed to endure harsh environments, it operates efficiently across a temperature range from -40 °F to 200 °F. Weighing only 0.4 kg (0.79 lb), this valve is compact yet highly functional, facilitating straightforward installation and maintenance. Its design ensures effective air flow management, which is crucial for maintaining vehicle control during braking. This control valve is essential for ensuring that your air brake system functions optimally, providing safety on the road. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring quality and performance for your commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 3
1/8-27 NPT
Supply Port 4
1/8-27 NPT
Height
114.6 mm (4.51 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Supply Port 1
Closed Port
Supply Port 2
Closed Port
Lever Position 3
DEL 1 / DEL 2
Lever Position 1
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Lever Position 2
Neutral Position
Actuator Material
Nylon
Mechanism Type
Positioning
Actuator Finish
Red
Exhaust Port
Vent
Weight
0.79 lb
