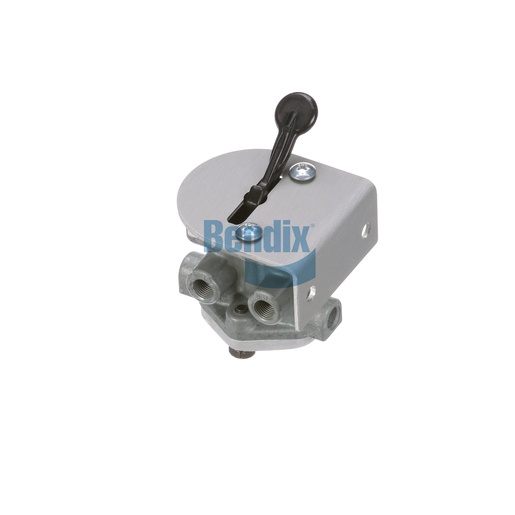

280913N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is a vital component in managing air flow within your vehicle's braking system, providing enhanced control and safety during operation. This versatile valve is designed for efficiency, featuring a compact design that allows for easy installation and maintenance. Its innovative construction ensures reliable performance, even under demanding conditions, with a maximum operating temperature of 200°F and a minimum of -40°F. This valve plays a crucial role in ensuring that your braking system functions correctly, contributing to the overall safety of your vehicle. With the ability to regulate air supply and pressure effectively, it ensures that your truck responds promptly to braking commands. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, providing you with quality products that help keep your vehicle on the road safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
63.5 mm (2.5 in)
Width
72.6 mm (2.86 in)
Harmonized System (HS) Code
848120
Dial / Plate Text
Actuator Finish
Black
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.86 lb
