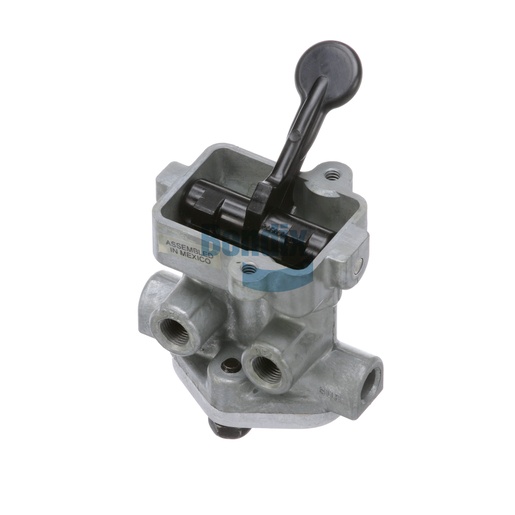

280914N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is designed for trailer applications, providing essential control over the braking system. This valve features a rugged construction that ensures reliability and durability under the most demanding conditions. With a total travel of 100° and a maximum operating temperature of 200°F, this valve supports optimal performance, ensuring your trailer brakes respond accurately and efficiently. Its compact design allows for easy installation, making it an ideal choice for fleet maintenance and repairs. Trust Source One Parts Center for your Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle needs.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.79 lb
