$73.95
$88.74

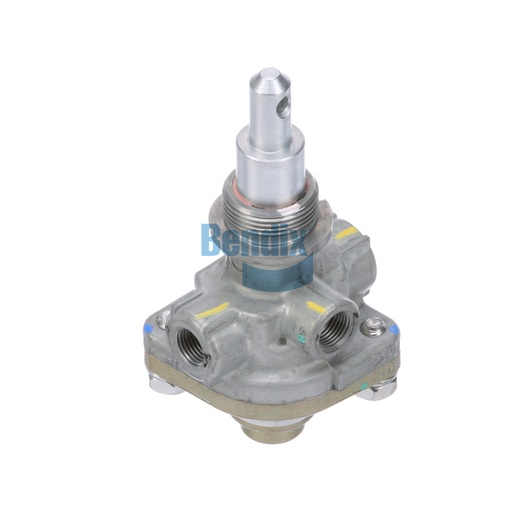

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The control valve is a vital component of your vehicle's braking system, specifically designed for trailer applications. This valve regulates air flow, ensuring efficient and smooth braking, which is critical for safety and performance. With a lightweight design and an operational range suited for various conditions, this control valve enhances the overall responsiveness of your trailer's brake system. Its sturdy construction guarantees durability, making it an ideal choice for heavy-duty use. For reliable components, trust Source One Parts Center as your best option for genuine Bendix OEM parts, ensuring your commercial vehicle is equipped with the highest quality products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.66 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
104.4 mm (4.11 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
