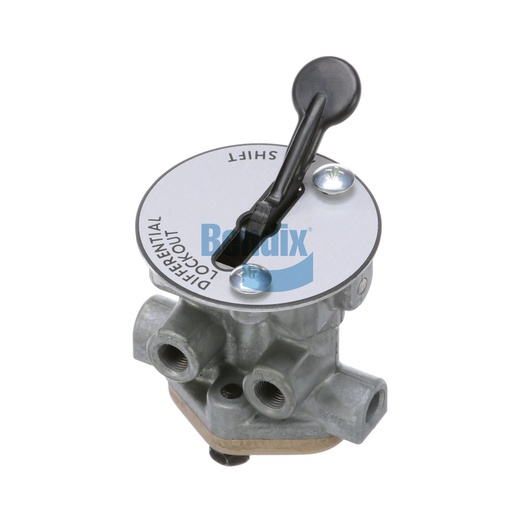

281015N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is an essential component for managing air flow in your vehicle's braking system, specifically designed for trailer use. This 3-position valve allows for precise control of air delivery and exhaust, optimizing the performance of your air brakes. Constructed to withstand harsh operating conditions, it features a maximum operating temperature of 200 °F and can function effectively at temperatures as low as -40 °F. The valve's compact design, weighing only 0.86 pounds, facilitates easy installation and maintenance, making it a preferred choice for fleet operators and mechanics alike. With its reliable performance and durability, this control valve ensures that your braking system operates smoothly, enhancing safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
63.5 mm (2.5 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Dial / Plate Text
Differential Lockout - Airshift
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.86 lb
