$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

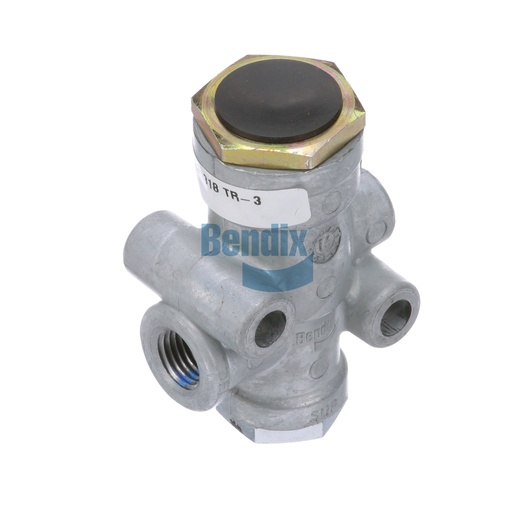

The Bendix inversion valve is engineered to efficiently control air flow within trailer brake systems, ensuring optimal braking performance. Constructed from durable materials, it is built to withstand the rigorous demands of commercial applications. The valve's design allows for quick and easy installation, making it a convenient option for vehicle maintenance. With a reliable performance across a wide temperature range, this inversion valve is crucial for maintaining consistent brake pressure, enhancing safety on the road. When looking for genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, providing quality and reliability you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Inlet Opening Pressure (Constant SUP / Variable CON)
17 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
35 PSI
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
70 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.57 lb
