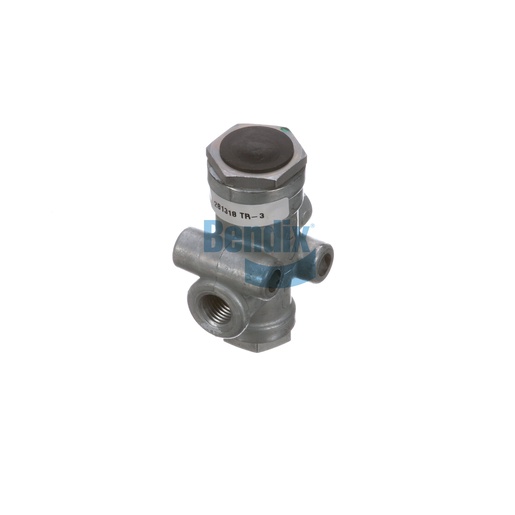

281318R
Inversion Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is a crucial component for commercial vehicles, specifically designed to enhance the efficiency and reliability of air brake systems. This valve operates by controlling the flow of air to the brake chambers, allowing for more responsive braking and improved safety on the road. With a robust construction that can handle temperatures ranging from -40°F to 200°F, it ensures optimum performance in extreme conditions. The valve features multiple ports for versatile installation, making it adaptable to various applications. Whether you are managing a fleet or an individual truck, this inversion valve's precise pressure regulation ensures consistent brake performance, reducing wear and tear on your braking system. At Source One Parts Center, you'll find genuine Bendix OEM parts like this inversion valve that are backed by quality assurance and exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Inlet Opening Pressure (Constant SUP / Variable CON)
17 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
35 PSI
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
70 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.57 lb
