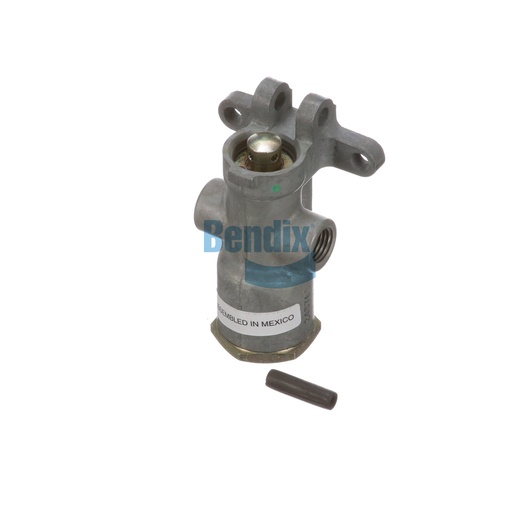

281391
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The control valve is an essential part of the braking system for trailers, designed to manage air flow and enhance braking efficiency. This valve is engineered for durability and reliability, ensuring that your trailer's braking system responds effectively even under demanding conditions. With a compact design and robust construction, it supports safe and efficient operation, minimizing the risk of brake failure. Additionally, the valve's compatibility with various configurations makes it a versatile choice for many trailers. For those seeking high-quality components, Source One Parts Center is the ideal destination for genuine Bendix OEM parts, ensuring top-notch performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.130 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Length
41.3 mm (1.63 in)
Width
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Country of Origin
Mexico
Actuator Style
Plunger (without Lever)
Mechanism Type
Self-Return
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.68 lb
