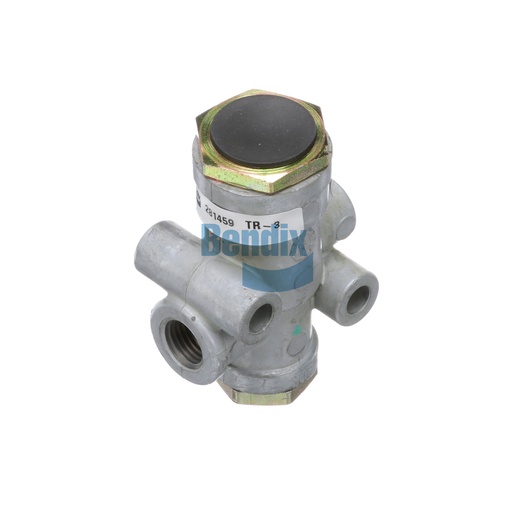

281459R
Inversion Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve by Bendix is a critical component designed for the efficient operation of air brake systems in commercial vehicles. With its compact design and advanced functionality, this valve allows for quick and reliable switching between supply and exhaust, ensuring optimal brake performance. It is engineered to handle varying pressures and temperatures, providing consistent performance across all conditions. This valve's construction ensures durability and longevity, making it a smart investment for fleet operators looking to maintain high standards of safety and efficiency. The Inversion Valve is essential for ensuring that your braking system operates smoothly, allowing for better control and responsiveness when driving. For those seeking top-notch quality, Source One Parts Center is your premier destination for genuine Bendix OEM parts, providing the assurance that your vehicle is equipped with the best components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
25 PSI
Width
35.1 mm (1.38 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
40 PSI
Length
49.0 mm (1.93 in)
Height
75.4 mm (2.97 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
8 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.86 lb
