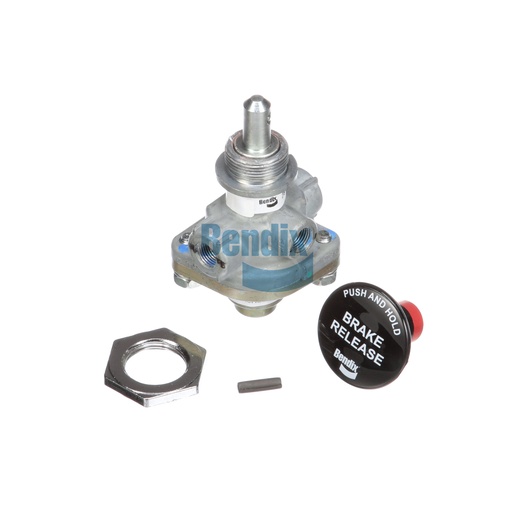

281481N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve by Bendix is a key component in managing the air brake system for commercial vehicles, offering precise control over braking performance. This valve is designed to be robust and reliable, ensuring that your braking system functions seamlessly. With a net weight of just 0.3 kg (0.68 lb), it is lightweight and easy to install, making it an excellent choice for fleet operators looking to minimize downtime. Its durable construction allows it to operate effectively in temperatures ranging from -40 °F to 200 °F, ensuring consistent performance in various climates. This valve is essential for maintaining optimal braking power, enhancing safety on the road. Source One Parts Center provides the best selection of genuine Bendix OEM parts, ensuring you receive the highest quality components for your vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
103.1 mm (4.06 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Push and Hold | Brake Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.68 lb
