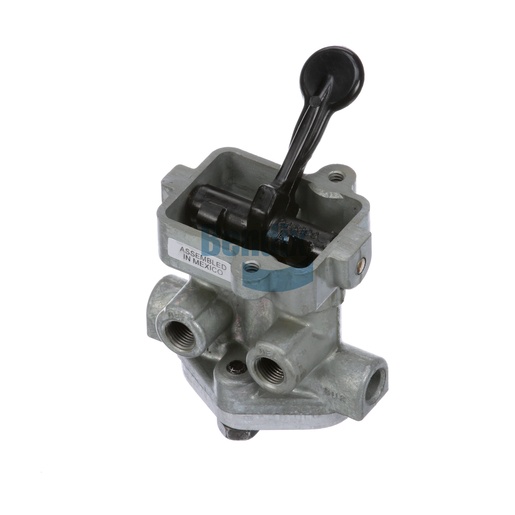

281560N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is engineered for optimal performance in commercial vehicles, ensuring seamless operation of trailer braking systems. With a robust design that allows for precise control, this 3-position valve is essential for managing air flow effectively. It features a durable nylon actuator and a black finish that withstands the rigors of road use, providing reliability you can count on. The valve offers a total travel of 100° and is compatible with various supply and delivery port configurations to suit diverse applications. Its lightweight design, weighing just 0.4 kg, makes it easy to install without compromising on strength or durability. Additionally, it can operate under extreme temperatures, making it suitable for a range of environments. For those seeking genuine Bendix OEM parts, Source One Parts Center is the premier destination, delivering quality and authenticity for all your commercial vehicle needs.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Supply Port 2
Closed Port
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.82 lb
