$58.95
$70.74

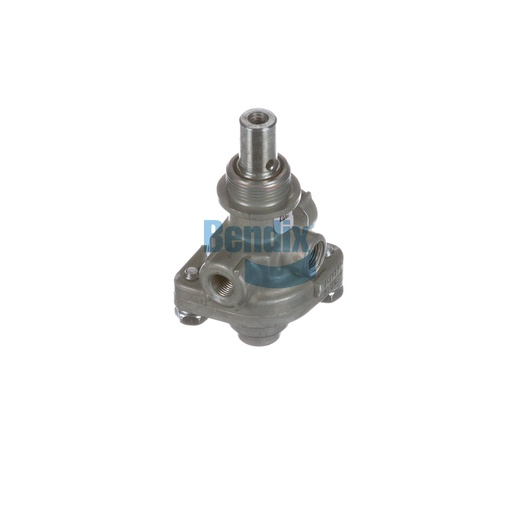

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an integral part of your vehicle's air brake system, providing precise control over air flow and pressure. This valve features an adjustable design that can be tailored to meet specific braking requirements, ensuring optimal performance. With a temperature range of -40 °F to 200 °F, it is built to function reliably in various environmental conditions. Its compact size and lightweight design (0.6 lbs) make installation straightforward, while its durable construction ensures longevity under heavy use. The valve's effective operation contributes significantly to the safety and efficiency of your braking system, making it essential for fleet maintenance. For genuine Bendix OEM parts that you can trust, Source One Parts Center stands as the leading supplier, ensuring your commercial vehicles are always road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
0.6 lb
