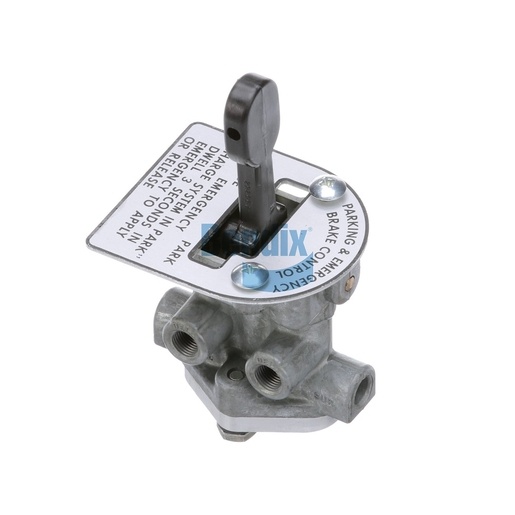

281620N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Maximize your trailer's braking efficiency with the Bendix Control Valve, a crucial component that ensures the smooth operation of your air braking system. This inversion valve is designed to deliver precise air pressure control, enhancing the responsiveness of your trailer's brakes. Weighing in at just 0.4 kg, the valve is lightweight yet robust, built to endure the demanding conditions of commercial trucking. Its innovative design facilitates quick installation and reliable operation, making it an ideal choice for fleet maintenance and upgrades. With the Bendix Control Valve, you can trust that your trailer will have the necessary braking power when it is needed most, contributing to overall road safety and vehicle performance. For those seeking genuine Bendix OEM parts, Source One Parts Center offers unparalleled quality and customer support, ensuring you receive the best products for your commercial vehicle.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Supply Port 4
1/8-27 NPT
Supply Port 3
1/8-27 NPT (Plugged)
Total Travel
100°
Height
125.0 mm (4.92 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve (Z-Shift)
Length
63.5 mm (2.5 in)
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Lever Position 1
DEL 1 / DEL 2
Lever Position 3
DEL 1 / EXH 2
Lever Position 2
EXH 1 / DEL 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Dial / Plate Text
Parking & Emergency Brake Control | Release-Park | Emergency
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.97 lb
