DESCRIPTION

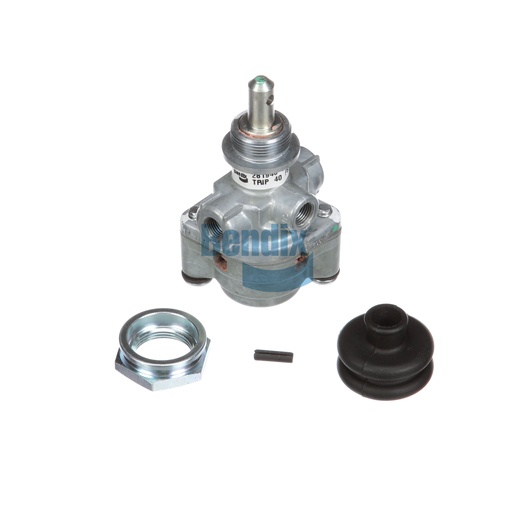

The Control Valve is crucial for managing the air brake system in commercial vehicles, providing reliable control over braking functions. Designed with precision, this valve supports a mounting configuration that allows for easy installation and maintenance. It operates effectively under a wide temperature range, ensuring consistent performance in varying conditions. This valve features multiple ports for enhanced versatility and is built to withstand the demands of heavy-duty applications, making it a trusted choice for truck operators. By upgrading to this control valve, fleets can improve their braking efficiency and safety. For purchasing this essential component, Source One Parts Center is your top destination for genuine Bendix OEM parts, ensuring you receive the best quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.8 lb
