$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

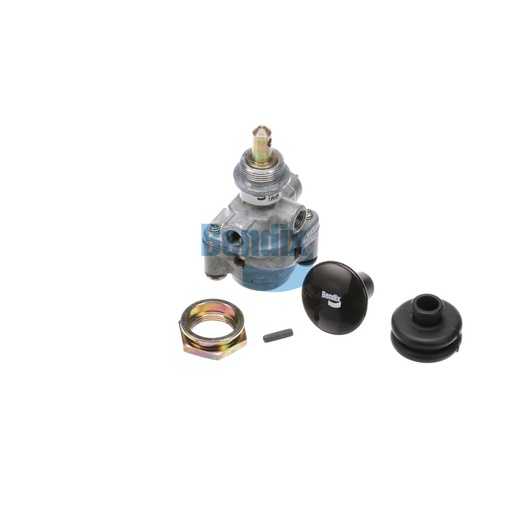

The Bendix control valve is an essential component for managing the air brake system in commercial vehicles. This valve is engineered to provide precise control over air delivery, ensuring that the brakes engage and release smoothly. With a temperature tolerance ranging from -40°F to 200°F, it is built to operate effectively in various environments. The valve features multiple ports, including delivery and exhaust ports, which allow for versatile application in both tractor and trailer systems. Its robust design ensures longevity and reliability, making it a critical part of your vehicle's safety system. For high-quality genuine Bendix OEM parts, Source One Parts Center is your best option for dependability and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Button Text
Button Color
Black
Country of Origin
Mexico
Dial Included
No
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
