DESCRIPTION

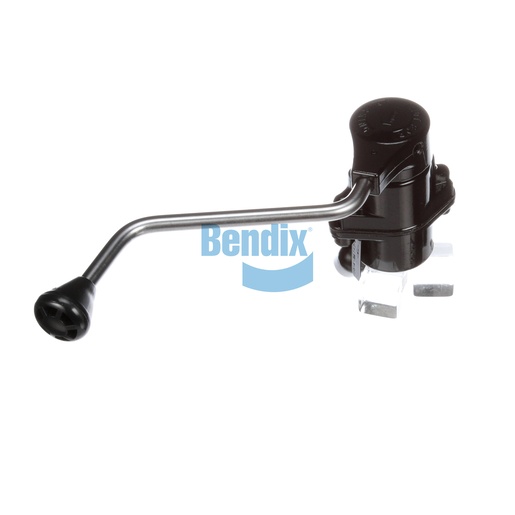

The Trailer Control Valve from Bendix is a vital component designed to enhance the functionality and safety of air brake systems in commercial vehicles. This valve allows for precise control of air flow to the trailer's braking system, ensuring that both tractor and trailer respond seamlessly during operation. Its advanced design incorporates features that facilitate efficient braking performance, making it essential for long-haul trucking and heavy-duty applications. With a robust construction, the valve is engineered to withstand the rigors of the road, ensuring reliability and durability. Regular maintenance and replacement of this valve are crucial for optimal braking performance and safety. For fleet operators looking for quality components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring your vehicles are equipped with the best available components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Mounting
5/16-18 UNC-2B (2x)
Total Handle Travel
63°
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Text
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Body Material
Zinc
Weight
2.18 lb
