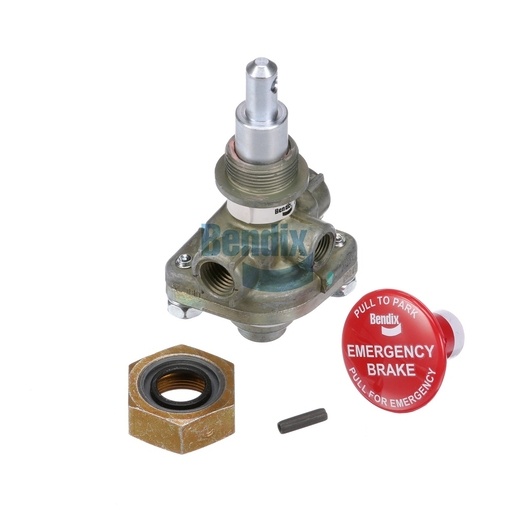

282500N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is designed for superior performance in trailer brake systems, ensuring efficient air regulation for optimal braking control. This component plays a crucial role in managing the air flow, allowing for precise activation and deactivation of the brakes, which is essential for maintaining safety while driving. Weighing merely 0.3 kg, it features a compact design that simplifies installation and offers reliable operation under various conditions. Constructed to meet stringent industry standards, this control valve ensures the longevity and efficiency of your braking system. For unmatched quality and reliability, choose Source One Parts Center as your go-to destination for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
115.3 mm (4.54 in)
Plunger / Button Height
2.09 IN
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Emergency Brake | Pull for Emergency
Button Color
Red (White Band)
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.75 lb
