282937

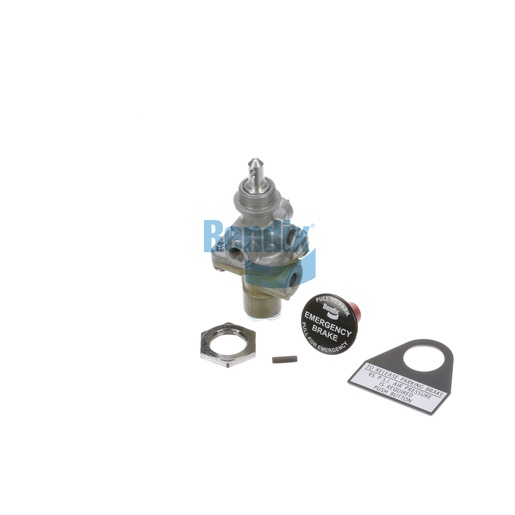

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a key component in trailer braking systems, allowing for precise control of air flow to ensure optimal brake performance. This robust valve is engineered for durability and reliability, featuring a user-friendly design that simplifies installation and operation. With dimensions that allow for easy mounting and a net weight of approximately 0.4 kg (0.93 lb), this valve is suitable for various applications within commercial vehicles. It operates effectively under a wide range of temperatures, making it a versatile choice for different environments. By choosing genuine Bendix parts like the Control Valve, you ensure that your vehicle's braking system operates at peak performance. For all your Bendix needs, look no further than Source One Parts Center, the best source for authentic OEM parts that guarantee reliability and quality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Rubber Boot Included
No
Button Text
Pull to Park | Emergency Brake | Pull for Emergency
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Dial Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.93 lb
