283008N

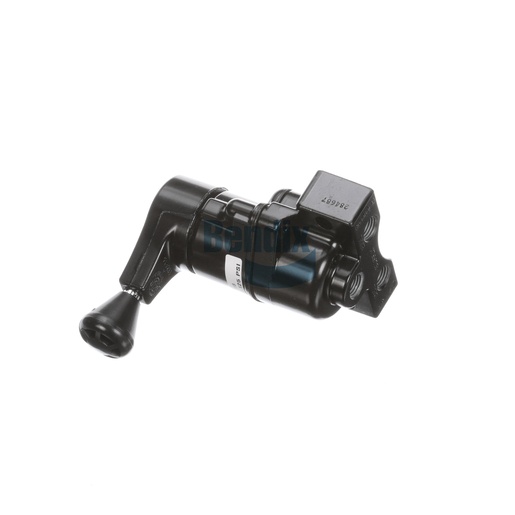

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is an essential component that plays a pivotal role in managing the air supply to your trailer’s braking system. Designed for reliability, this valve ensures smooth and responsive braking by effectively controlling the release and application of air pressure. Its robust construction allows it to endure the harsh conditions typically faced by commercial vehicles, ensuring long-lasting performance and dependability. The valve features a straightforward design that facilitates easy installation and maintenance, making it an ideal choice for fleet operators looking to minimize downtime. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is built to perform under a wide range of conditions. Source One Parts Center is your best source for genuine Bendix OEM parts, offering quality products and exceptional customer service to meet all your commercial vehicle requirements.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Final Delivery Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 125 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Body Material
Zinc
Weight
2.35 lb
