$109.95
$131.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

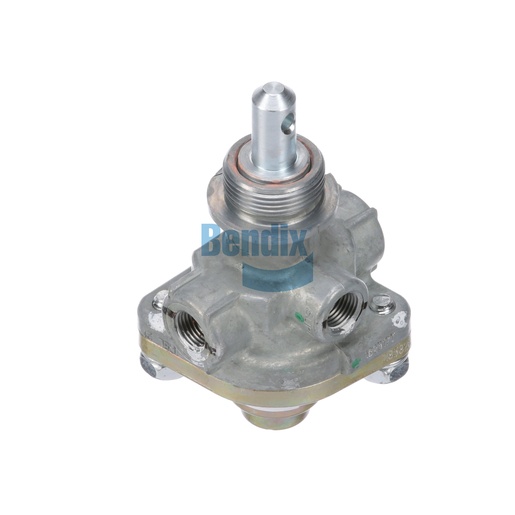

The Bendix Control Valve is a key component in the trailer braking system, designed to effectively manage air flow for optimal brake performance. This valve features a compact design, weighing only 0.3 kg, which facilitates easy installation and maintenance. Engineered for reliability, it operates efficiently in various temperature ranges, ensuring consistent performance in all conditions. The control valve is critical for ensuring that your braking system responds accurately to driver inputs, enhancing safety and control on the road. By choosing a genuine Bendix Control Valve, you secure top-tier engineering and quality for your vehicle. Source One Parts Center is the best destination for acquiring authentic Bendix OEM parts, providing you with the reliability and performance your truck needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
