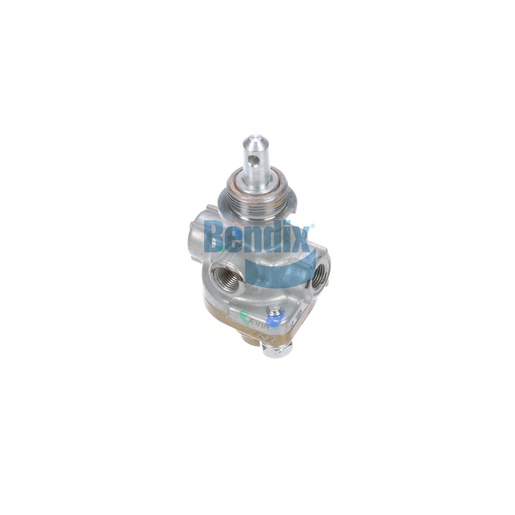

283828R
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component for ensuring the efficient operation of your commercial vehicle's air brake system. Designed with precision, this valve regulates air flow to various brake components, enhancing the overall responsiveness and effectiveness of braking. Its robust construction allows it to operate seamlessly within a wide temperature range, from -40 °F to 200 °F, ensuring reliability in extreme conditions. The valve features multiple ports for optimal connection, allowing for easy integration into existing systems. With a maximum operating pressure of 60 PSI, it guarantees consistent performance under load, making it ideal for heavy-duty applications. By choosing genuine Bendix parts from Source One Parts Center, you can trust that you are investing in quality and durability for your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
