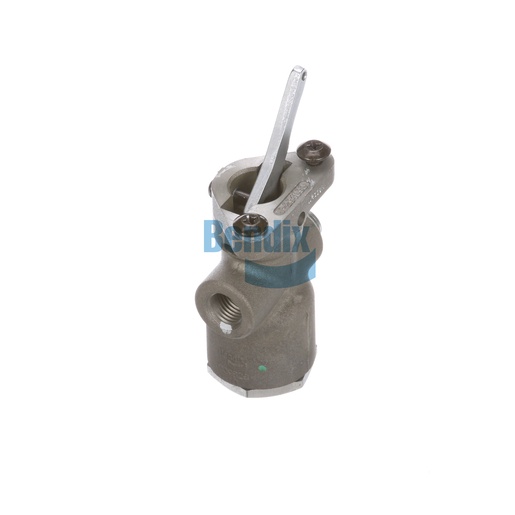

283935R
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is an essential component in your Bendix braking system, designed to regulate air pressure and flow for optimal braking performance. This valve ensures that the brake system operates efficiently, providing reliable stopping power while maintaining vehicle safety. With a robust design suitable for heavy-duty use, it can withstand extreme conditions, ensuring longevity and durability. By investing in a high-quality control valve, you’re ensuring that your braking system functions smoothly and effectively, which is vital for the safety of your vehicle. For the best selection of genuine Bendix OEM parts, including this control valve, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Port 2
1/4-18 NPT (Plugged)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Lever Position (Initial)
Away from Exhaust
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Weight
0.44 lb
