284060N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

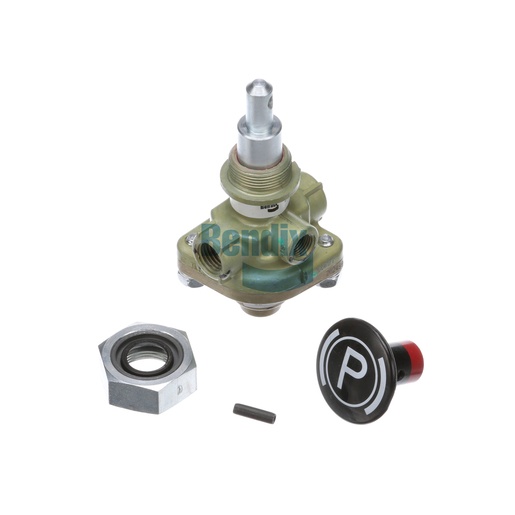

The Control Valve from Bendix is engineered to optimize your vehicle's braking performance, making it a critical component in your braking system. Designed for trailer applications, this valve ensures efficient air flow management, which is essential for maintaining optimal brake function. Its compact design allows for easy installation while the robust construction ensures durability and reliability in tough conditions. Suitable for a variety of temperatures, this valve performs flawlessly in environments ranging from -40 °F to 200 °F. When it comes to maintaining your braking system, trust the quality of Bendix parts. Source One Parts Center is the best choice for genuine OEM parts, ensuring your truck remains safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
115.3 mm (4.54 in)
Plunger / Button Height
2.09 IN
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Text
<(P in a Circle)>
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.75 lb
