DESCRIPTION

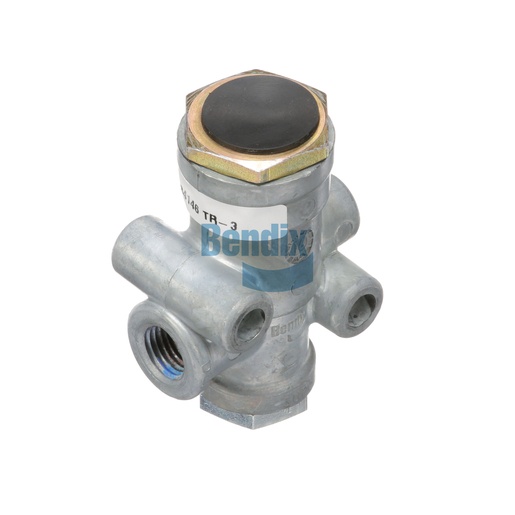

The Bendix inversion valve is designed to provide precise control over air flow in trailer brake systems, ensuring optimal performance and safety. This valve is crucial for managing the direction of air pressure, facilitating efficient brake operation in various conditions. Engineered for durability, it features a robust construction that withstands the demands of heavy-duty applications. The inversion valve operates effectively across a range of temperatures, making it suitable for diverse environments. With its compact design and multiple ports, installation is straightforward, allowing for quick integration into existing systems. Choose Source One Parts Center for your Bendix OEM parts, where you can trust the quality and reliability of your components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
35 PSI
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Inlet Opening Descending Pressure (Common CON / SUP)
50 PSI
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
