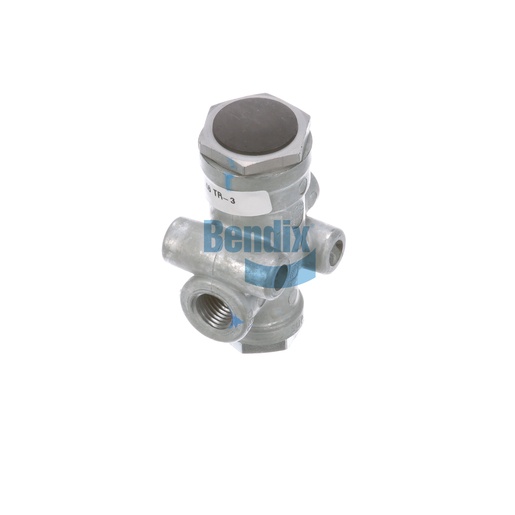

284146R
Inversion Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is designed to improve the functionality of air brake systems, providing precise control over air pressure for optimal braking performance. With its innovative design, this valve allows for quick adjustments, ensuring that your braking system responds effectively under various load conditions. Weighing just 0.3 kg (0.55 lb), it is lightweight yet durable, making it suitable for a variety of commercial vehicles. The valve's construction meets strict quality standards, ensuring reliability and longevity even in harsh environments. Its compatibility with multiple systems makes it a versatile choice for fleet operators. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring your vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
35 PSI
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Inlet Opening Descending Pressure (Common CON / SUP)
50 PSI
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
