DESCRIPTION

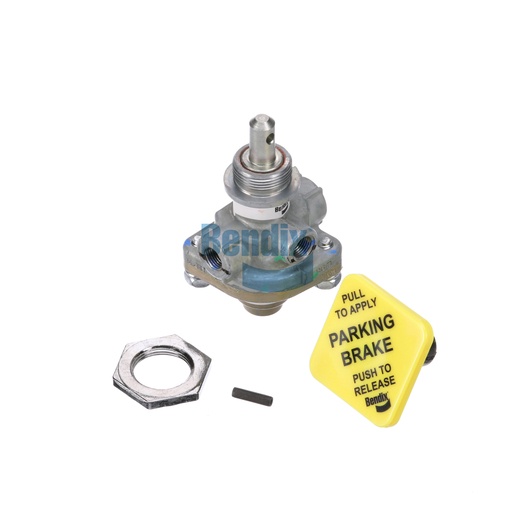

The Bendix control valve is an integral part of your vehicle's braking system, allowing for precise control of air pressure and flow. This valve is designed for durability, with a robust construction that ensures reliable performance even in extreme temperatures ranging from -40°F to 200°F. Its innovative design allows for easy integration into existing systems, making it a popular choice among fleet operators for maintenance and upgrades. This valve enhances the overall safety and responsiveness of your commercial vehicle, ensuring optimal braking performance. When you purchase Bendix parts from Source One Parts Center, you can be confident in the quality and authenticity of the components you are using.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.64 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
103.9 mm (4.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
