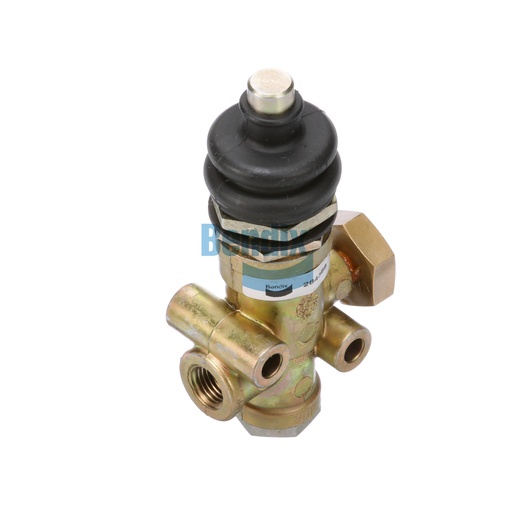

284388N
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a key component in air brake systems, specifically designed for trailers to ensure efficient management of air pressure. With its robust construction and reliable performance, this valve is engineered to handle the demanding conditions of commercial vehicle applications. The valve features a user-friendly design for quick activation and dependable operation, enhancing overall braking efficiency. With its compact dimensions, it allows for easy installation in tight spaces. For those looking to purchase genuine Bendix OEM parts, Source One Parts Center is the best choice, providing quality products tailored to meet your vehicle's specific needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.200 IN
VMRS
013-010-198: Toggle Control Valve
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather Valve)
Height
118.9 mm (4.68 in)
Product Type
2-Position Valve (Differential Lock)
Maximum Operating Temperature
200 °F (93 °C)
Width
41.9 mm (1.65 in)
Length
57.2 mm (2.25 in)
Harmonized System (HS) Code
848120
Actuator Style
Plunger
Mechanism Type
Self-Return
Actuator Material
Steel
Country of Origin
United States
Actuator Finish
Zinc-Plated
Mounting
Ø .28 IN (2x)
Weight
1 lb
