$309.95
$371.94

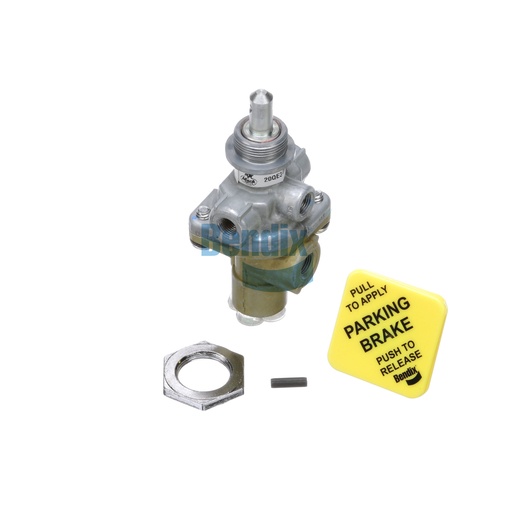

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an integral part of your trailer braking system, designed to deliver precise control over braking actions. This valve features a durable construction and is engineered for reliable performance in demanding environments. With its pull-to-apply and push-to-release functionality, it simplifies the operation of the parking brake, making it easier for drivers to manage their braking system effectively. The compact design ensures it fits seamlessly into your existing system, while its robust materials provide longevity and resistance to wear. Whether you're managing a fleet or maintaining a single vehicle, this control valve is a smart investment for ensuring safety and performance on the road. Trust Source One Parts Center for all your Bendix OEM parts, as we provide unmatched quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Exhaust Port
Vent
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.93 lb
