$194.95
$233.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

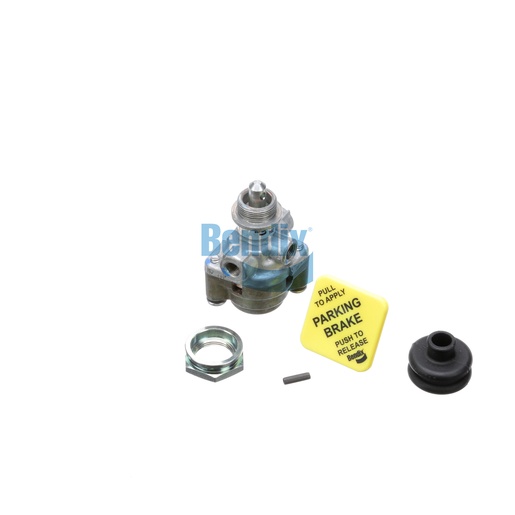

The Bendix Control Valve is engineered for optimal performance in your commercial vehicle's braking system. This valve is designed to provide precise control over air flow, which is crucial for maintaining effective braking power. Its compact design allows for easy installation and the use of high-quality materials ensures durability and reliability, even under the most demanding conditions. With a robust construction that can withstand temperature ranges from -40°F to 200°F, this valve is built to last. The Bendix Control Valve is an essential part of your braking system, enhancing safety and performance. When it comes to sourcing genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Pilot Trip Pressure
24 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120,848180
Length
99.1 mm (3.9 in)
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Exhaust Port
Vent
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
