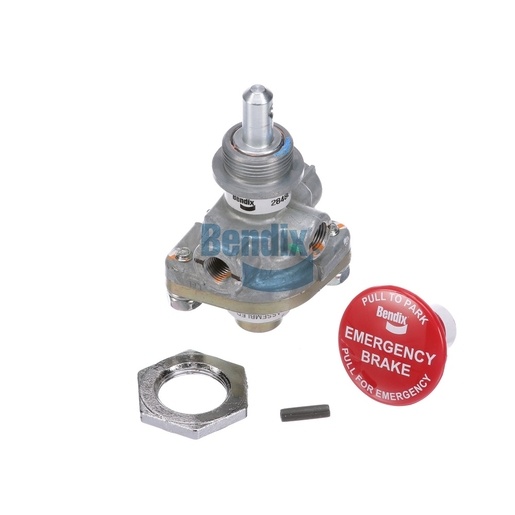

284860N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is an essential part of your trailer's air brake system, enabling effective control of air flow for safe and reliable braking. This valve features a robust design, capable of handling high pressure and extreme temperatures, ensuring optimal functionality in demanding conditions. With its straightforward installation process and durable construction, it supports the efficient operation of your braking system, enhancing overall vehicle safety. Upgrading to this reliable control valve can lead to improved response times and braking efficiency, making it a valuable addition to your commercial vehicle. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive quality products that stand the test of time.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Emergency Brake | Pull for Emergency
Button Color
Red (White Band)
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
